24 February 2018

Kubernetes: Orchestration framework for containers

Kubernetes is an Open-source tool donated by Google after experiencing it for over 10 years as Borg. It is a platform to work with containers and is an orchestration framework for Docker containers which gives you: deployment, scaling, monitoring







K8s helps in moving from host-centric infrastructure to container-centric infrastructure

In virtualization world atomic unit of scheduling is VM same way in docker its Container and in Kubernetes it is Pod

keys of kubernetes
- we describe our application requirement in k8s yaml's
- It expose containers as services to the outside world.
- Kubernetes follows client-server architecture.
- In K8s we enforce desired state management via a manifest.yaml file. Here we feed the cluster service to run on a desired state in our infrastructure.
- on the other side we have worker. Worker is a container host & it has a kubelet process running which is responsible for communicating with K8S cluster services.

**Kubernetes rule says- pod cannot be directly exposed it has to be via service**

Containers > pods > deployments

For example, you can have two services − One service would contain nginx and mongoDB, and another service would contain nginx and redis. Each service can have an IP or service point which can be connected by other applications. Kubernetes is then used to manage these services.


Resources in kubernetes

minion − is the node on which all the services run. You can have many minions running at one point in time. Each minion will host one or more POD.

Pod  Pods are Mortal & is the smallest unit of deployment in K8s object mode or is like hosting a service. Each POD can host a different set of Docker containers. The proxy is then used to control the exposing of these services to the outside world. You cannot create your own pods, they are created by replicasets.

ReplicaSet  replicasets are created by deployment, these deployments contains declaration of containers which you want to run in cluster. like image/tag, env variable, data volumes,
Kubernetes has several components in its architecture.

Labels − use labels in your deployment manifest to target specific pods. that means pod with specific labels will only be manipulated depending on the label you have defined in your deploy manifest.

etcd − k8s objects persisted here. This component is a highly available key-value store that is used for storing shared configuration and service discovery. Here the various applications will be able to connect to the services via the discovery service.

kube-apiserver − This is an API which can be used to orchestrate the Docker containers.
kube-controller-manager − This is used to control the Kubernetes services.
kube-scheduler − This is used to schedule the containers on hosts.
Kubelet − This is used to control the launching of containers via manifest files from worker host. (which talks with K8S cluster).
kube-proxy − This is used to provide network proxy services to the outside world.
Flannel − This is a back-end network which is required for the containers.

Advance resources

context - it is a group of access parameters. Each context contains a Kubernetes cluster, a user, and a namespace. The current context is the cluster that is currently the default for kubectl : all kubectl commands run against that cluster.
ConfigMap - an API object that let you store your other object or application configuration, setting connection strings, analytics keys, and service URLs & further mounting them in volumes to use them as environment variable.
sidecar - is just a container that runs on the same Pod as the application container, because it shares the same volume and network as the main container, it can “help” or enhance how the application operates. Common examples of sidecar containers are log shippers, log watchers, monitoring agents among others, aka utility container.

 helm  helm is a package manager for k8s which allows to package, configure & deploy applications & services to k8s-cluster.
helm Chart  helm packages are called charts, which consist of few YAML configs and some templates which are cooked into k8s manifest file.
helm chart repository − this packaged charts brought available and can be downloaded from chart repos.

Mandatory Fields while writing a manifest file
In manifest file for kubernetes objects you want to create, you’ll need to set values for the following fields:
apiVersion - Which version of the Kubernetes API you’re using to create this object. for more on apiversions see this >  Different api versions to use in your manifest file
kind - What kind of object you want to create.
metadata - Data that helps uniquely identify the object, including a name string, UID, and optional namespace
spec - What state you desire for the object.

Service in kubernetes
There are four ways to make a service accessible externally in kubernetes cluster
  • Nodeport: deployment that need to be exposed as a service to the outside world can be configured with the NodePort type. In this method when deployment exposed, cluster node opens a random port between default range: 30000-32767 on the node itself with IP (hence this name was given) and redirects traffic received on that random port to the underlying service endpoint which got generated when you expose your deployment. (combination of NodeIP + Port is NodePort ) accessing your app/svc as http://public-node-ip:nodePort
  • clusterIP is the default and most basic, which give service its own IP and is only reachable within the cluster.
  • Loadbalancer:  an extension of the NodePort type—This makes the service accessible through a dedicated load balancer, provisioned from the cloud infrastructure Kubernetes is running on. The load balancer redirects traffic to the node port across all the nodes. Clients connect to the service through the load balancer’s IP.
  • Ingress resource, a radically different mechanism for exposing multiple services through a single IP address. It operates at the HTTP level (network layer 7) and can thus offer more features than layer 4 services can.
Network in kubernetes

Kubernetes default ethernet is called as cbr0 like you have docker0 for docker.

3 fundamental requirement in k8s networing model:
  • All the containers can communicate with each other directly without NAT.
  • All the nodes can communicate with all containers (and vice versa) without NAT.
  • The IP that a container sees itself as is the same IP that others see it as.
Pods Networks
Implemented by CNI plugins
pod network is big and flat
you have IP/Pod
every pod can talk to any other pod

Nodes Networks
All nodes needs to be able to talk
kubelet <-> API Server
Every node on the n/w has this process running called Kubeproxy & kubelet
n/w not implemeneted by k8s.

Service Networks
IP of your service is not tied up with any interface
Kube-proxy in IPVS modes create dummy interface on the service n/w, called kube-ipvs0
where as kube-proxy in IPTABLES mode does not.

Storage in kubernetes
there are three type of access mode:
RWO : Read Write Once    - only one pod in cluster can access this volume
RWM : Read Write Many  - All pods in cluster can acess data from this volume
ROM : Read Only Many    - All pods in cluster can only read data from this volume

Not all volume support all modes

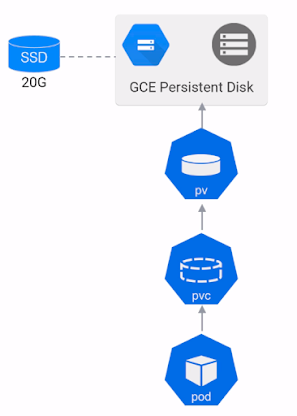

to claim the storage 3 properties has to match between PersistentVolume & PersistentVolumeClaim

1. accessMode
2. storageClassName
3. capacity

have a look on to sample persistentVolume & persistentVolumeClaim to understand storage manifest
After you create the persistentVolume & persistentVolumeClaim, the Kubernetes control plane looks for a PersistentVolume that satisfies the claim's requirements. If the control plane finds a suitable PersistentVolume with the same StorageClass, it binds the claim to the volume.
as of now the pv is not claimed by any pvc and thus is available and waiting for a pvc to claim it.
after you deploy the persistentVolume(pv) & persistentVolumeClaim (pvc) you can assign it to your running pod using below kind

---
apiVersionv1
kindPersistentVolume
metadata
  namepv
spec:
  accessModes
- ReadWriteOnce
storageClassNamessd
capacity
   storage10Gi
hostPath:
   path: "/mnt/mydata"
...
---
apiVersionv1
kindPersistentVolumeClaim
metadata
  namepvc
spec:
  accessModes
- ReadWriteOnce
storageClassNamessd
capacity
   storage10Gi
...

Deployment in kubernetes

Deployment is all about scaling and updating your release. You deploy your container inside a pod and scale them using replicaSet. It is not like only updating replicaSet will do the rolling update, we need to add a strategy in deployment manifest to get the job done
strategy:
 typeRollingUpdate
 rollingUpdate:
   maxUnavailable25%
   maxSurge1

an ideal deployment manifest will look like deployment.yml
its deployment manifest you need to update every time when you want to scale you application tune your number of replicaSet, if you want to update the app modify your image version or anything just tweak deployment manifest and it will redeploy your pod communicating with apiServer
$ kubectl apply -f deployment.yml



Autoscaling in kubernetes
when demand goes up, spin up more Pods but not via replicas this time. horizontal pod autoScaler is the answer

IF
---
apiVersionv1
kindDeployment
metadata
  namemydeploy
spec:
  replicas4
...

THEN
---
apiVersionautoscaling/v1
kindHorizontalPodAutoscaller
...
spec
  scaleTargetRef
    apiVersionapps/v1
    kinddeployment
    namemydeploy
  minReplicas1
  maxReplicas10
targetCPUUtilizationPercentage50
...

Launching kubernetes as a single node cluster locally

Minikube is the tool that allows you to launch K8S locally. Minikubes runs a single-node-K8S-cluster inside a VM at your local.
before you install kubectl
Install minikube on Linux:
use this script to launch K8S VM on local and interact with Minikube cluster install-minikube.sh
basic minikube command
FunctionCommand
verify kubectl to talk to clusterkubectl config current-context ( should return minikube)
to stop clusterminikube stop
to delete noteminikube delete
start version specific kube nodeminikube start --vm-driver=none --kubernetes-version="v1.6.0"
check node info kubectl get nodes
kubernetes cluster infokubectl cluster-info
kubectl binnary for windowskubectl.exe
minikube 64-bit installerminikube-installer.exe

Launching Kubernetes-Cluster on Google Cloud Platform

Presuming you holding account with GCP and is active then follow:

Go to Navigation menu--> Kubernetes engine --> clusters

provide all the details as per requirement like Zone, number of CPU's, OS, size of cluster(number of nodes/minions not include master- as that's taken care by platform behind the scene) and create

or same time we have command line option to create the cluster as:

$ gcloud container --project "gcp-gke-lab-7778" clusters create "cluster-1" \
--zone "asia-south1-a" --username "admin" --cluster-version "1.14.10-gke.0" \
--machine-type "f1-micro" --image-type "COS" --disk-type "pd-standard" --disk-size "100" \
--scopes "https://www.googleapis.com/auth/compute","https://www.googleapis.com/auth/devstorage.read_only","https://www.googleapis.com/auth/logging.write","https://www.googleapis.com/auth/monitoring","https://www.googleapis.com/auth/servicecontrol","https://www.googleapis.com/auth/service.management.readonly","https://www.googleapis.com/auth/trace.append" \
--num-nodes "3" --network "default" --subnetwork "default" --addons HorizontalPodAutoscaling,HttpLoadBalancing,KubernetesDashboard \
--no-enable-autoupgrade --no-enable-autorepair

GKE cluster look like
          GCP-ClusterInfo                                                                                            GCP-CLusterNode                                                                                GCP-3NodeCluster

In GCP command line:

$ gcloud container clusters list
$ gcloud container clusters get-credentials cluster-1 --zone asia-south1-a --project psyched-metrics-208409
    this will configure kubectl command-line access










*Launching K8S-cluster locally (1-Master and 2 Node)

Note:
not all versions of docker supports kubernetes you need to install compatible version when needed

Pre-reqs:
docker      -  runtime container
kubelet     -  k8s node agent that runs on all nodes in your cluster and starts pods and containers
kubeadm  -  admin tool that bootstrap the cluster
kubectl     -  command line util to talk to you cluster
CNI          -  install support for Container networking/ContainerN/wInterface

check if your Linux is in permissive mode:
$ getenforce
   should return Permissive

Command to setup
$ apt-get update && apt-get install -y apt-transport-https \
   curl -s https://package.cloud.google.com/apt/doc/apt-key.gpg \
   | apt-key add - cat </etc/apt/sources.list.d/kubernetes.list \
   deb http://apt.kubernetes.io/ kubernetes-xenial main \
   EOF

if fails with PGP key try following
$ sudo apt-key adv --keyserver hkp://keyserver.ubuntu.com:80 --recv-keys 6A030B21BA07F4FB

alternate way
if  you fails to add k8s repository add it manually
$ vi /etc/apt/sources.list.d/kubernetes.list (for Ubuntu)
$ vi /etc/yum.repos.d/kubernetes.list(for Linux)
     add--> deb http://apt.kubernetes.io/ kubernetes-xenial main
or use this REPO
$ apt-get update (for Ubuntu)
$ yum update (for Linux)
$ apt-get install docker.io kubeadm kubectl kubelet kubernetes-cni (for Ubuntu)
$ yum install docker.io kubeadm kubectl kubelet kubernetes-cni --disableexcludes=kubernetes (for Linux)
$ systemctl start docker kubelet && systemctl enable docker kubelet

Cluster maintainance
$ kubectl drain NodeName > which moves your nodes to SchedullingDisabled state
$ kubectl uncordon NodeName > which Make the node schedulable again

Uninstall k8s-cluster
$ kubeadm reset
$ sudo yum remove kubeadm kubectl kubelet kubernetes-cni kube*

Deploy k8s cluster specifying pod network via kubeadm
$ kubeadm init --apiserver-advertise-address=MasterIP  --pod-network-cidr=192.168.0.0/16

If it fails with lower docker version update docker:
docker.io (used for older versions 1.10.x)
docker-engine (is used for before 1.13.x )
docker-ce ( used for higher version since 17.03)
$ apt-get install docker-engine

if fails with [WARNING Service-Kubelet]: kubelet service is not enabled, please run 'systemctl enable kubelet.service'
$ systemctl enable kubelet.service

If fails with [ERROR Swap]: running with swap on is not supported. Please disable swap.
$ swapoff -a

if fails with [ERROR NumCPU]: the number of available CPUs 1 is less than the required 2
use command with flag --ignore-preflight-errors=NumCPU
this will actually skip the issue. Please note this is OK to use in Dev/test only.. not in production.

Run again
$ kubeadm init --apiserver-advertise-address=MasterIP --pod-network-cidr=192.168.0.0/16 --ignore-preflight-errors=NumCPU

and result will be like:














now grab the three commands from output and run them with a regular user so as to configure our account on master to have admin access to API server from a non-privileged account

$ mkdir -p $HOME/.kube
$ sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
$ sudo chown $(id -u):$(id -g) $HOME/.kube/config

$ kubectl get nodes
$ kubectl get pods --all-namespaces


if your normal user is not a sudoer then do this:
$ vi /etc/sudoers
              add following entry somewhere like:
                root ALL=(ALL) ALL
                red ALL=(ALL) NOPASSWD:ALL

if still fails to run kubectl command and fails with below error:
The connection to the server x.x.x.x:6443 was refused - did you specify the right host or port?
consider checking kubelet status by running below command it should be active and running
$ sudo systemctl kubelet status
    if it is inactive
check swap status, if it is enabled, disable it (sudo swapoff -a) and restart kubelet service

the status remains pending until we will not create pod networks

to add pod-network you can install only one pod-network/cluster either use calico, weave, flannel or any as cin provider
$ kubectl apply --filename https://git.io/weave-kube
$ kubectl apply -f https://docs.projectcalico.org/v3.11/manifests/calico.yaml

if at all you failed to deploy pod network, you might need to do the following:
  • sudo swapoff -av
  • sudo systemctl restart kubelet
  • sudo reboot now

now check nodes status again, you will see them Ready & Running

now time to run minions

go to Node2 & Node3 and run the command given by K8S-cluster when initialized

Ensure you have fulfilled the pre-reqs (docker/kubectl/kubeadm/kubelet/kubernetes-cni)

$ kubeadm join 192.168.0.104:6443 --token zo6fd9.j26yrdb9qlu1190n --discovery-token-ca-cert-hash sha256:c165160bd18b89ab7219ec5bd5a60cfca24887ee816c257b84451c9feaf0e05a

if fails while joining cluster with  [ERROR FileContent--proc-sys-net-bridge-bridge-nf-call-iptables]: /proc/sys/net/bridge/bridge-nf-call-iptables contents are not set to 1
provision your nodes with the following command
$ echo '1' > /proc/sys/net/bridge/bridge-nf-call-iptables

at times kubectl commands fails to give o/p while running any command and results with error:
Unable to connect to the server: net/http: request canceled while waiting for connection (Client.Timeout exceeded while awaiting headers)
you may have some proxy problems, try running following command:
$ unset http_proxy
$ unset https_proxy
and repeat your kubectl call

check status from any node you will see a master & workers
once you do deployment pods will be spread across workers

kubectl helpful commands
FunctionCommand
Initialize cluster
verify k8s cluster-info
IP address show
reset cluster
delete tunl0 iface

deregister a node from cluster
kubeadm init --apiserver-advertise-address=MASTERIP --pod-network-cidr=192.168.0.0/16
kubectl cluster-info
ip a s

kubeadm reset -f && rm -rf /etc/kubernetes/
modprobe -r ipip

kubectl drain nodeName
kubectl drain nodeName --ignore-daemonsets --delete-local-data
kubectl delete node nodeName
listing namespaces
setting namespace preference
validate current namespace
kubectl get namespace
kubectl config set-context --current --namespace=<namespace-name>
kubectl config view --minify | grep namespace
investigate any object
investigate kubelet service
kubectl describe node/deployment/svc <objectName>
sudo journalctl -u kubelet
exposing deployment as service
scaling your deployment
kubectl expose deployment my-deployment --type=NodePort --name=my-service
kubectl expose deploy my-deployment --port=9443 --target-port=61002 --name=my-service --type=LoadBalancer
kubectl scale --current-replicas=3 --replicas=4 deployment/my-deployment
all possible attribute of an obj
wide details of running pods
delete a pod forcefully
delete bulk rsrc frm a namespace
kubectl explain pod --recursive
kubectl get pods -o wide
kubectl delete pod mypodName --grace-period=0 --force --namespace myNamespace
kubectl delete --all po/podName -n myNamespace
open a bash terminal in pod appkubectl exec -it app --bash
create a yaml manifest,
without sending it to the cluster
kubectl create deploy web --image=nginx --dry-run -o yaml > web.yaml
edit deployment web runtimekubectl edit deploy/web

Br
Punit
